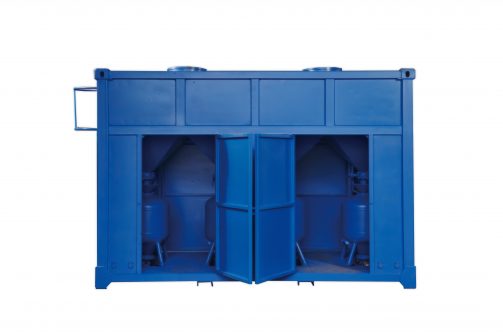

Combined Blast Machine SPCT-121

$15,871.00



SPCT 121 is a large combined blast machine with artistic exteriority. It is compact, energy-saving and highly efficient. It’s designed to fit the size of regular containers for the easy transportation and moving. It’s robust enough to work non-stop for hours; and it’s large enough to hold 30t abrasives at a time avoiding frequent refill. The above features have greatly enhanced work efficiency. The derusting standard of the processed work piece surface reaches Sa2.5 -3 level while the surface roughness reaches 25 – 100um after being treated with SSCE 121 combined blast machine. SPCT 121 combined blast machine is widely used in shipbuilding, bridge, mining, oil pipe, metal smelting, boiler, machine tool, railway, port construction and irrigation works, especially for derusting for a large area.

SPCT121 combined blast machine has demonstrated low failure rate after numerous testing and by improvement conducted by our technical staff. Other distinguishing features of SPCT121 combined blast machine include simple maintenance, high technical content, superior quality, high efficiency, being robust and sturdy as well as continuous operation. Compared with similar products in international market, the SPCT121 combined blast machine is far superior in terms of work performance.

In stock N/A .

Description

Blast Machine Type/ Q’ty SPCT 6524 * 4
Volume 0.2 m³
Weight 210 Kg
Air Connection ∅4″
Working Pressure 0.6~0.8 MPa
Power Voltage AC220 V
Control Voltage DC24   V
Blasting Outlets ∅1-1/4″Quick Coupling
Nozzle Diameter and Q’ty ∅9.5mm *4
Air Consumption 30 m³/min(At 0.7MPa)
Dimension(L×W×H) 4200×2200×2800 mm
Volume of the whole equipment 8m³
Weight of the whole equipment 4800 Kg
